Automation - Solar Photovoltaic - ZHUHAI ULICON SCIENCE & TECHNOLOGY CO.,LTD

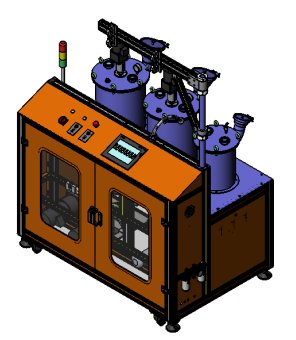

: Name: Potting Pump

Introduction: The product is specially used for the glue potting process of the junction box of photovoltaic modules. The Y-axis servo moving platform is used with the four-side centering mechanism to integrate the glue filling and transplanting function; The X/Z axis adopts a standard motion module, which has a long life and accurate positioning; It can be equipped with the function of glue quantity detection (accuracy ±3mm), the equipment has a compact structure, and supports personalized glue filling mode (with or without/height adjustable), which is perfectly adapted to the layout of the production line.

View details

: Name: Potting Inspection, Mounting Hole & Potting inspection

Introduction: This product is specifically designed for the quality inspection of the potting of photovoltaic module junction boxes. It adopts a system of three custom area array cameras to accurately identify potting defects (with a leakage detection rate of 100ppm and a misjudgment rate of 0.5%), and simultaneously complete multi-dimensional inspections such as silicone gel overflow detection (2-8mm), hole integrity, and frame size Supports rapid switching among multiple versions (<10 minutes), meeting the strict industry standards such as full coverage of white glue without black leakage

View details

: Name: Auto Corner Filling & Cover Closer

Introduction: The product is dedicated to the processing of photovoltaic module corners. It automatically completes the grinding and deburring of the four corners of the module and the installation of the junction box cover, which is compatible with the mainstream cover type in the market (sample adaptation is required), and is equipped with a high-power dust collection system to collect aluminum chips. It supports non-stop cover repair operation, with a positioning accuracy of ±1mm (cover installation accuracy ± 0.05mm), and is perfectly suitable for 30-50mm frame components.

View details

: Name: Testing Kit Auto Loader

Introduction: The product is dedicated to the photovoltaic module testing process. It can automatically perform two tasks: (1) the precise installation of different plugs at both ends of the component, and (2) the pick-and-place operation of the tooling rod. And use visual positioning (camera accuracy of 0.2mm) with the servo correction system to perform plug installation through the cylinder. One-click switching is compatible with all types of components (conventional/half-cell/single and double glass) with a length of 1650-2550mm, a width of 992-1450mm and a frame height of 20-50mm, achieving highly flexible production.

View details

: Name: Hi-pot Tester

Introduction: The product is suitable for PV module assembly line. It is mainly used for automatic test and result recording of electrical performance parameters of monocrystalline silicon, polycrystalline silicon and various solar cell modules.

View details

: Name: Testing Kit Auto Removing

Introduction: The product is specially used in photovoltaic module testing process. Automatically complete the clamping of the tool rod and the lossless separation of the plugs at both ends of the components (anti-clamping alarm function). The work station switching is switched through the cylinder control system, and the position of the plug and tool rod is accurately identified in conjunction with the visual positioning system. The robot cooperates with the cylinder to perform the plug-in and pick-up actions to achieve efficient recycling and reset of the test tool.

View details
